Corrosion Performance of Ni and Ni-P Coatings via Electrodeposition in an Emulsified Supercritical CO₂ bath

　　Sung-Ting Chung, Yan-Chi Chuang, Cheng-Yu Li, Shih-Yi Chiu, Wen-Ta Tsai*

　　* E-mail : wttsai@mail.ncku.edu.tw

　　Department of Materials Science and Engineering National Cheng Kung University, Tainan, Taiwan


　　 報告人:蔡文達

　　個人簡介：

　　臺灣臺南市成功大學特聘教授 ，歷年來執行數十項腐蝕相關研究課題，研究成果總計已有215篇學術期刊論文發表，其中有SCI論文166篇;而國內外學術研討會發表的論文超過285篇，已獲得國內外核準的專利有10件，其它技術報告已超過120件。

　　曾任兩屆防蝕工程學會理事長，主辦第九屆亞太腐蝕控制會議，參與海峽兩岸材料腐蝕防護研討會的舉辦，為推動海峽兩岸腐蝕專業的交流與合作做出巨大貢獻。


 NCKU: National Cheng Kung University

• Founded: 1931
• Area : 183 hectares
• Colleges: 9
• Departments: 40
• Institutes: 51

• Personnel : 5084

•  Faculty : 1278
•  Staff : 1531
•  Affiliated Hospital : 2275

•  Enrollment : 21889
  •   Undergraduate : 11056
  •   Master : 7417
  •   Doctoral : 3416

Background information


     Properties and applications of nickel (Ni) deposition

Properties: Electrical conductivity, Corrosion resistance, …etc.

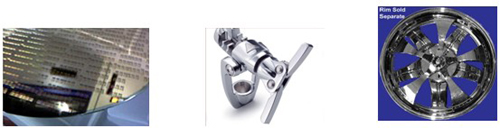

Applications: Electronic packaging, MEMS, advanced integrated circuit (IC), Anti-corrosion, Anti-wear, Decoration…etc.

Methods of nickel (Ni) deposition

Dry Process

1. PVD
2. CVD
3. Sputter…etc.

Wet Process

1. Electroplating
2. Electroless plating…etc.

     Advantages and Disadvantages of Wet Process

Advantages :
Cheap
Easy to operate
High deposition rate…etc

Disadvantages:
The formation of hydrogen may create several pin-holes on the film.
Wastewater treatment (toxic species)…etc

Possible solutions:
Non-aqueous or green electrolytes:
ionic liquids and supercritical CO₂…etc
#p#副標題#e#

Supercritical Fluids

　　Characteristics of CO₂

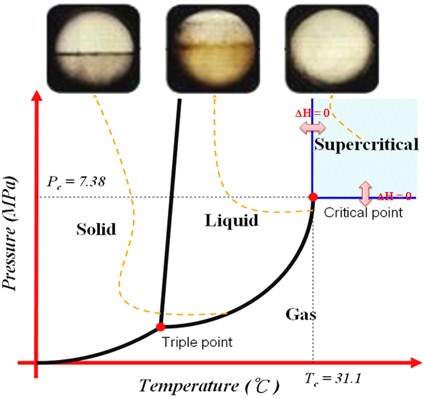

　　CO₂  Phase Diagram

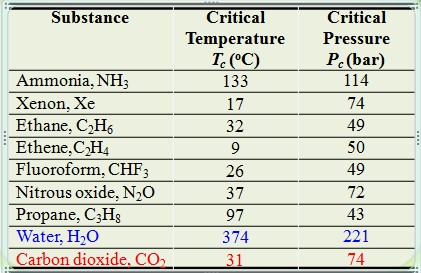

　　Critical properties of various solvents

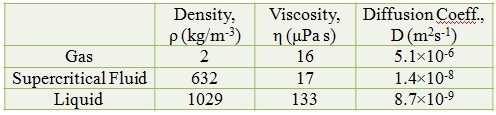

　　Characteristic of CO₂  : Gas, Supercritical Fluid and Liquid

　　Gas-like Diffusivity

　　Liquid-like Density

　　Low Surface Tension


New Technology for Electrodeposition


　　Supercritical Nano-Plating (SNP)

　　Sone and colleagues have demonstrated the electrodeposition of nickel from an emulsion of an aqueous nickel plating solution in sc-CO₂ bath.

　　Nonionic surfactant : PEO-PPO (6 wt.%)

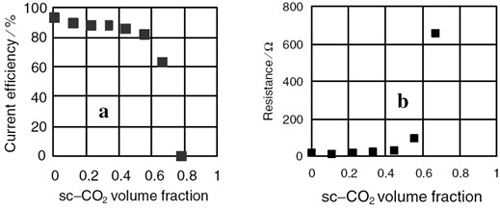

　　sc-CO₂ volume fraction vs. Current efficiency & Resistance

　　The result indicates that the plating electrolyte can be reduced at 60% compared to that of currently industrially by used plating bath.#p#副標題#e#

　　The plated films using this method have a uniformity of surface and the grain size is smaller than that formed by using conventional electroplating methods.


　　Experimental Conditions for Electrodeposition

　　Substrate

　　            • Brass substrate cut in2.4 × 1 cm²×2

　　            • Polish in a slurry containing 0.3 μm Al₂O₃ powder

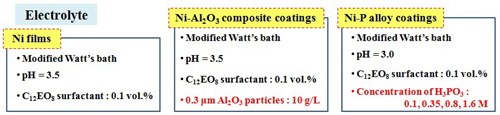

　　* Modified Watt’s bath including NiSO₄·6H₂O, NiCl₂·6H₂O and H₃BO₃

　　Plating condition

　　         • Current density： 5 A/dm² for Ni and Ni-Al₂O₃ deposits

　　                                        2 A/dm² for Ni-P alloy coatings

　         　• Temperature : 50^oC

　         　• Total charge : 108 coul.

　　         • Aqueous electrolyte : 0.1 MPa (air), 10 MPa (Ar)

　　         • Electrolyte containing CO₂  fluid： 5 MPa, 10 MPa and 15 MPa

　　Heat-treatment

　　The heat-treatment of Ni-P alloy coatings was performed from room temperature to heat-treated temperature for 1 hr. (350, 400, 450, 500, and 550^oC)

　　

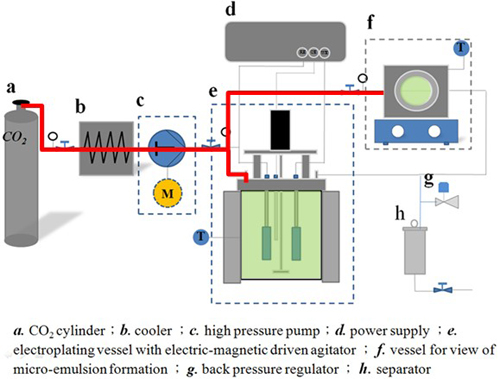

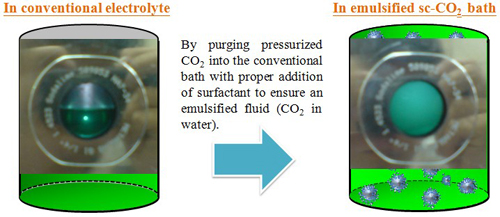

      Experimental Apparatus for Electrodeposition

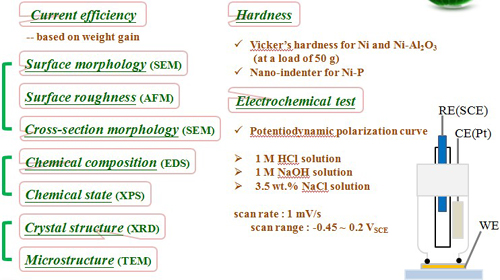

　　Materials Characterization for Electrodeposits

Experimental (I)    Pure Ni deposits


　　Material Characterization (Ni Electrodeposit)

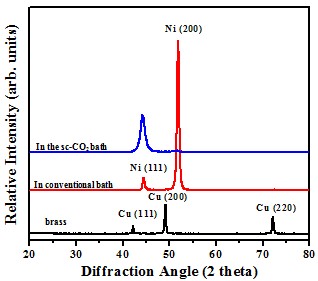

Crystal structure

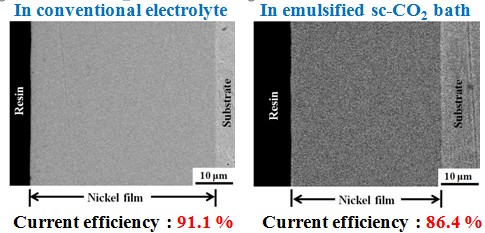

　　Current efficiency

　　

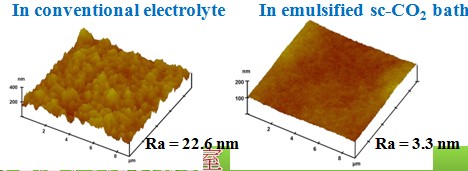

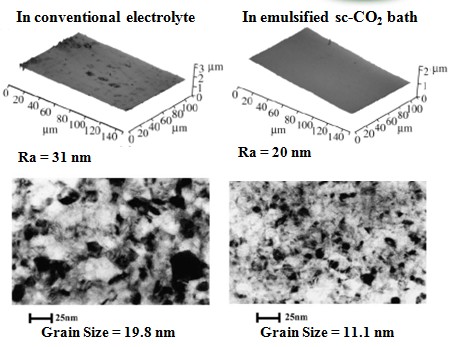

Surface roughness

　　Chemical composition(effect of sc-CO₂ fluid)#p#副標題#e#

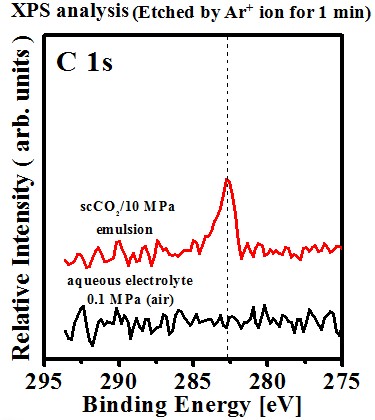

　　Chemical shift

• C_(graphite) : 284.6 eV
• C dissolved in Ni lattice

          C_(Ni-C) : 282.8 eV

       Possible reactions responsible for the formation of Ni-C deposit:
       Ni²⁺ + 2e^- à Ni
       2H⁺ + 2e^- à H₂
       HCO₃^- + 5H⁺ + 4e^- → C + 3H₂O


　　Microstructure and Micro-hardness

　　TEM microstructure



　　Grain size and micro-hardness

　　Electrochemical behavior

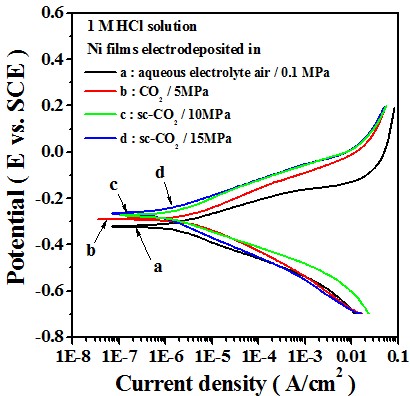

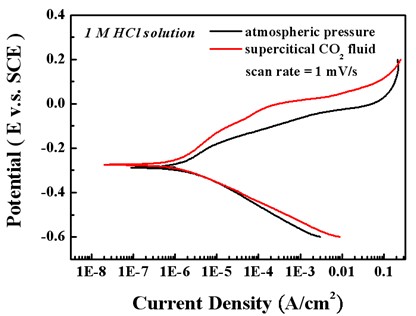

　　Potentiodynamic polarization curve

　　Test in 1 M HCl solution

EIS result

　　Electrochemical behavior (effect of crystallographical orientation)#p#副標題#e#

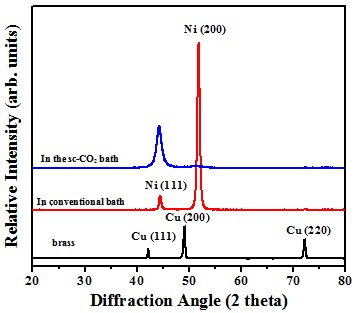

　　Crystal structure

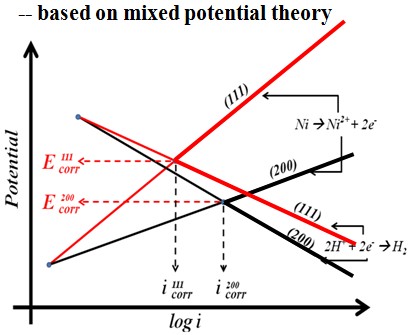

　　Schematic diagram



　　
Microstructure and Micro-hardness

     （effect of CO2 pressure)


　　TEM microstructure

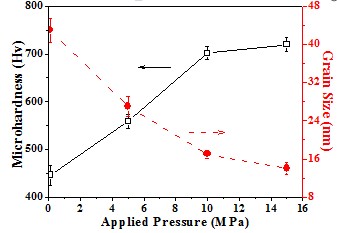

Grain size and micro-hardnes

　　The dependence of micro-hardness on the grain size is also revealed

　　Hall-Petch equation  σ_{y  =}  σ_o + k_yd^-1/2


　　Electrochemical behavior

　　-- Potentiodyamic polarization curve

Test in 1 M HCl solution

Experimental (II)  Ni-Al2O3 composite coatings


　　Surface morphology and cross section micrograph

　　(electrolyte containing 10 g/L Al₂O₃)

Surface morphology

Cross section micrograph

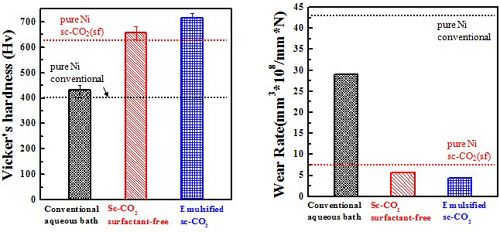

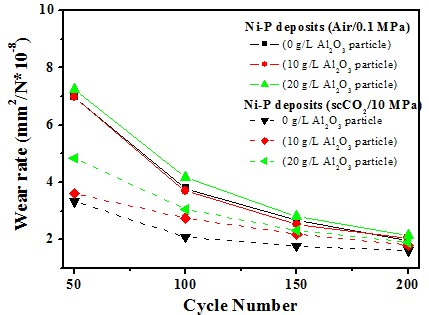

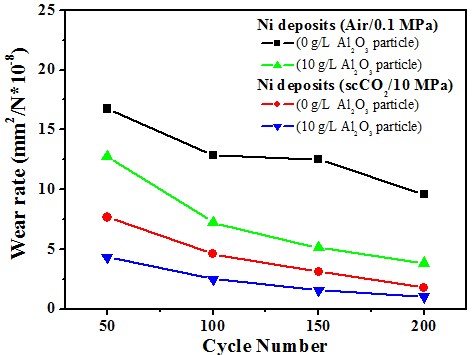

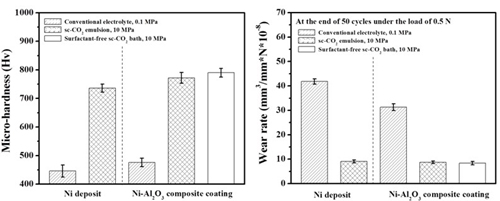

　　Micro-hardness & Wear rate (electrolyte containing 10 g/L Al₂O₃)

　　Ni/Al₂O₃ deposits

　　Wear resistance#p#副標題#e#

　　Ni-P/Al₂O₃ deposits

　　Wear resistance

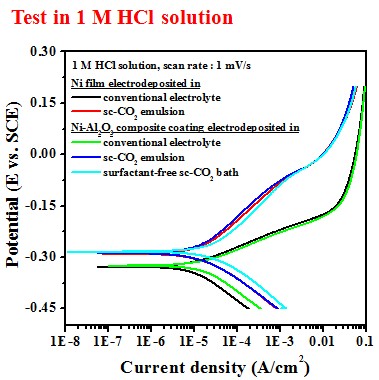

　　 Electrochemical behavior (electrolyte containing 10 g/L Al₂O₃)

　　-- Potentiodyamic polarization curve

　　Surface morphology and cross section micrograph (electrolyte containing 10 g/L SiC)

　　Surface morphology



Cross section micrograph

　　Micro-hardness & Wear rate(electrolyte containing 10 g/L SiC)

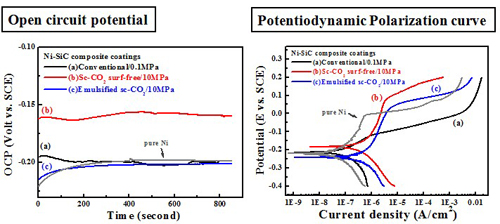

　　Electrochemical behavior (electrolyte containing 10 g/L SiC)#p#副標題#e#

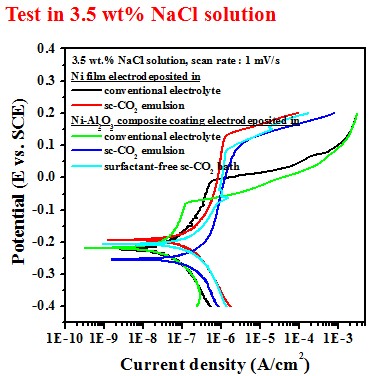

　　Test in 3.5 wt.% NaCl solution

　　Electrochemical behavior

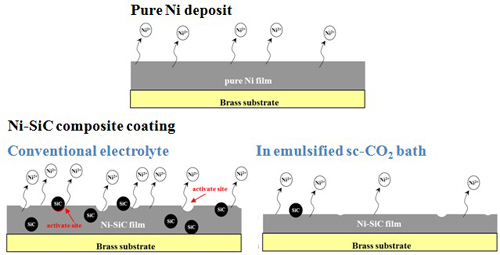

　　Schematic diagrams

Experimental (III)  Ni-P alloy coatings

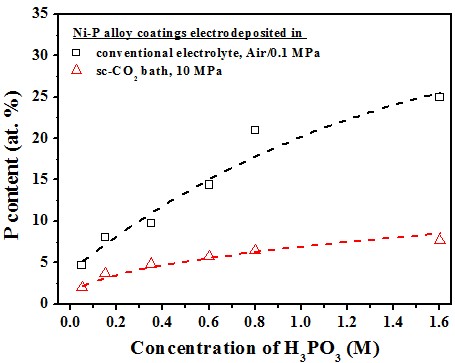

　　P content  effect of [H₃PO₃]

　　The co-deposition mechanism for the Ni-P alloy coatings

        Ni²⁺ + 2e^- à Ni
        6H⁺ + 6e^- à 6H_ads

        Direct mechanism:
        H₃PO₃ + 3H⁺ + 3e^- à P + 3H₂O

        Indirect mechanism:
        H₃PO₃ +6H_ads à PH₃ + 3H₂O
        2PH₃ + 3Ni²⁺ à 3Ni + 2P + 6H⁺


　　Grain size (effect of P content)

In conventional electrolyte

In emulsified sc-CO₂ bath

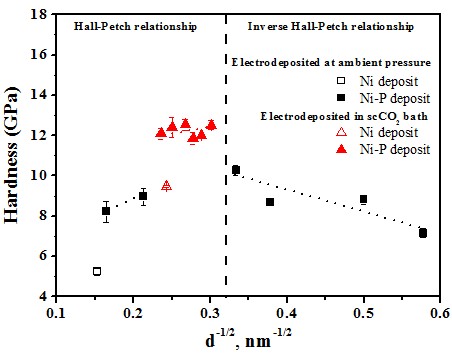

　　Hardness  effect of grain size

　　Hall-Petch equation

　　Grain size > 10 nm

　　σ_{y  =}  σ_o + k_yd^-1/2

　　Inverse Hall-Petch equation#p#副標題#e#

　　Grain size < 10 nm

　　σ_{y  =}  σ_o - k_yd^-1/2

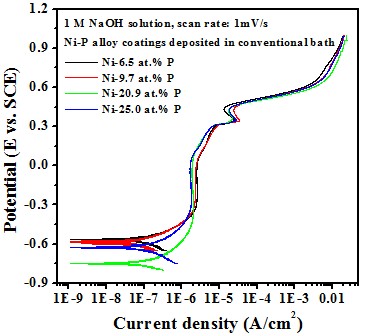

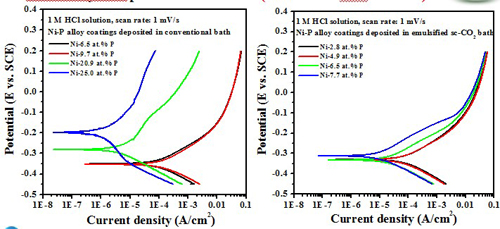

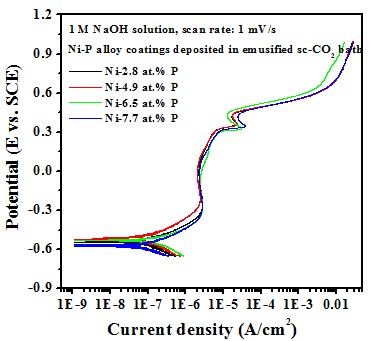

　　Electrochemical behavior  effect of P content

　　-- Potentiodyamic polarization curve

　　Test in 1 M NaOH solution

　　(Test in 1 M HCl solution)

　　The formation of an adsorbed film of hypophosphite (H₂PO₂^-) generated by the oxidation of phosphorus present in the coating surface, which in turn blocks the water molecules from interacting with nickel, thus inhibiting nickel oxidation.

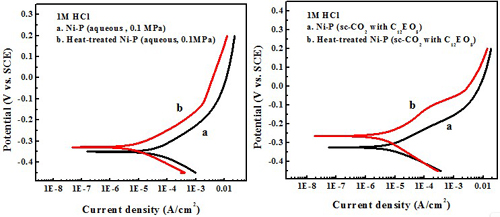

　　Electrochemical behavior    effect of heat treatment

　　Test in 1 M HCl solution

 Conclusions

　　The Ni-based deposits could be successfully fabricated from an emulsified sc-CO₂ bath.

　　The surfactant addition in sc-CO₂ containing electrolyte play an important role on the surface appearance of the deposits. When electrodeposition was performed in the emulsified sc-CO₂ electrolyte, a flat and almost pinhole-free surface was observed.

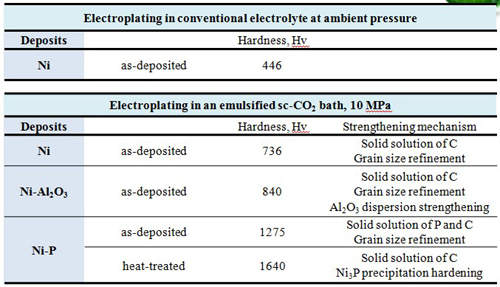

　　Carburization of metal can be achieved by electrodeposition in the sc-CO₂ -containing baths. As a result, the hardness of Ni-based films deposited in the sc-CO₂  bath was enhanced by the additional solid solution strengthening mechanism.

　　In 1 M HCl solution, the Ni film deposited in sc-CO₂ bath had a lower anodic current density and a higher polarization resistance, which is mainly attributed to the crystallographical orientation.

　　The high P content in the deposit was beneficial to enhance the corrosion resistance of the Ni-P alloy coating, in 1 M HCl solution.

　　Heat treatment significantly enhances the hardness and corrosion resistance compared to the as-deposited Ni-P alloy.


Acknowledgements

　　The authors thank the National Science Council of the Republic of China under Contract No. NSC 98-2622-E-006-032 for partially supporting the use of instruments for surface characterization.
